ProGuard Rear - Cable Tie

Vorova ProGuard Crash Replacemetn

ProGuard Rear - Cable Tie

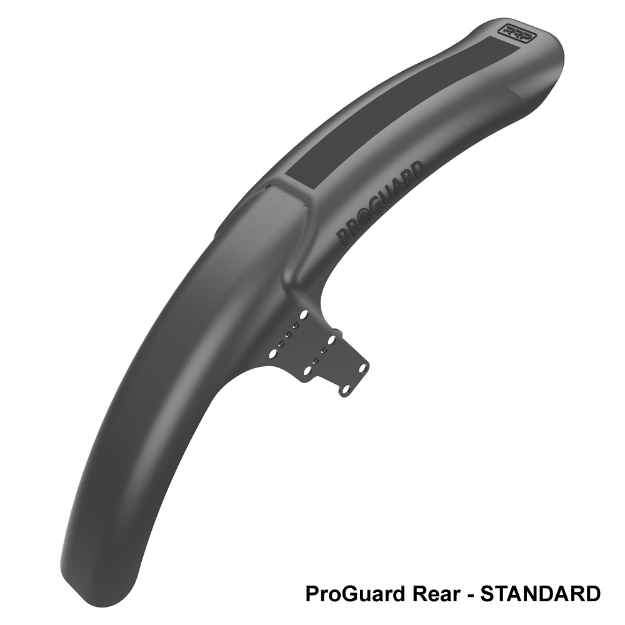

The ProGuard is our amazing new range of FRONT and REAR mudguards for disc brake mountain bikes offering unmatched protection from mud and spray, it’s perfect for Trail, Enduro or Downhill racers and essential for the weekend warrior looking for the very best protection. Our design intent was to increase the tyre clearance, improve fit, and reduce the mud clogging issues seen with this type of mudguard. The MINI offers a very compact design for all year round protection, The STANDARD offers superb protection in a shorter more compact design, whereas the longer MAX PROTECTION version (21mm longer at front than the STANDARD and 68mm longer at the rear) offers incredible unmatched levels of protection.

Available in 1 size

Mini:

(325mm long 64g - without zip ties)

PRICES
Mini
£25.99 GBP
Coloured Stickers
£3.20 GBP

Check out the RRP Dream Build featuring our ProGuard Bolt On mudguards with custom decals HERE

UK distributor:
EXTRA UK

The ProGuard range of mudguards have a soft high gloss finish which is a characteristic of our highly polished mold and our special polypropylene mix, this unique mix has been specifically blended for:

  • COLD WEATHER STRENGTH
  • HIGH IMPACTS
  • HIGH FLEXIBILITY
  • HIGH DURABILITY

As a result of achieving the above properties it means that the surface layer is soft and will scratch easily, you must also be careful about putting any chemicals onto the surface as it may tarnish the finish. That said we have tested and can recommend the following chemicals to use:

Silicone - Spray high quality silicone onto surface and very gently remove with a clean cloth to maintain a high gloss finish and to stop dirt and water from sticking.

Bike cleaner – Non caustic bike cleaners can be used on the ProGuard mudguard

GT85/WD40/Solvents - Only rub these on the surface if you want to remove the gloss and display a matte finish to match your bike.

NB: REMEMBER – ADD ANY STICKERS BEFORE YOU USE ANY OF THE ABOVE CHEMICALS ON THE MUDGUARD OR THEY WILL NOT STICK

The ProGuard - REAR mudguard is designed to help protect your shock, linkages and bearings from getting hammered at high velocity from your back wheel.

FEATURES INCLUDE

  • 43 snap-off top holes to fit straight braces between the seatstays, raised braces, or dropped braces including those with supporting struts
  • Indent to create 4mm of additional tyre clearance (also fits the large raised brace on the Merida e-bike)
  • Side arms designed to fit conventional seatstays (that go to centre of wheel), and offset seatstays (raised up from centre of wheel)
  • Recess to protect sticker allowing you to match the sticker on your ProGuard FRONT mudguard
  • Made of the same thick Polypropylene material used on the ProGuard FRONT
  • Same gloss finish as the ProGuard FRONT (you can easily make the guard a matte finish if you prefer by spraying GT85 on it (after applying any stickers)
  • 6 zip ties are provided

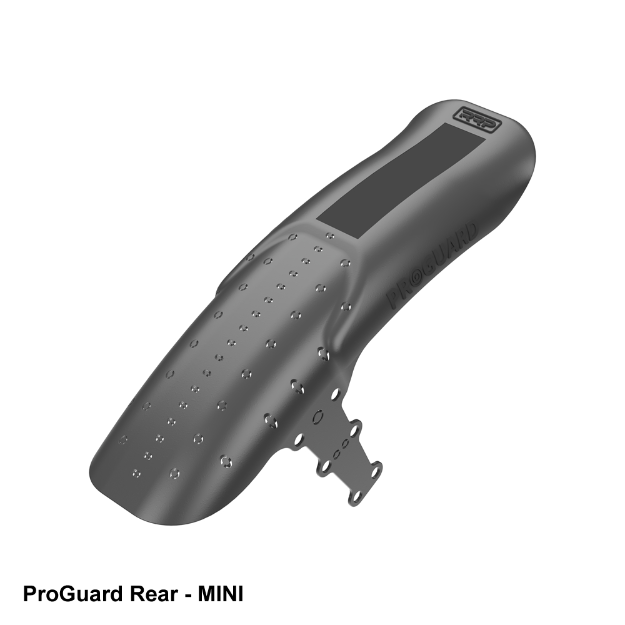

MINI:
325mm long 64g - without zip ties
WHEELS:
26” 27.5” 29”
TYRES:
up to a 3” tyre
FORKS:
All forks including Boost forks (except reverse arch)
TRAVEL:
Any travel

COLOURED STICKERS AVAILABLE (SOLD SEPARATELY)

WHITE, CYAN, YELLOW, ORANGE, RED, MAGENTA, GREEN, TURQUIOSE, NEON GREEN, BLUE, PURPLE

STICKER RECESS

The recess down the centre is a nice easy reference to apply our coloured stickers to, but it has a more important job, this recess prevents the sticker having to sit proud on the surface of the guard making it vulnerable to durability and jet wash issues. The supertack glue used on our stickers is strong, although it’s fair to say that no sticker is able to withstand a sustained attack from a powerful jet wash, although the recess does prevent a direct hit

MATERIAL

We decided to make our mudguard material slightly thicker than some offerings which together with our unique polypropylene mix gives great flexibility, durability and strength

ZIP TIES

6 zip ties are provided with each mudguard, the holes on the side arms are mandatory requiring 4 leaving the other 2 for the fork brace (although more could be added if desired)

Our ProGuard Rear - Cable Tie is designed, manufactured, and packed in the United Kingdom

Fitting the ProGuard Rear - Cable Tie




Rear mudguard

Image showing rear mudguard fitted
  1. Slide the guard into position WITH THE WHEEL IN PLACE, you may need to squeeze the sides of the guard as you do so to get it through the sear stays

  2. Hold the guard in position making sure it tracks the tyre (equal gap both ends)

  3. You can now see which holes you will need for the most secure fit to the rear

    Important - If you have a brace between the seatstays - you must attach at least one zip tie to it if you don't have a brace between the seatstays - you must use 3 zip ties on each arm

  4. Remove guard and push out/snap-off any holes needed by putting the fornt of the guard onto the workbench, and using a thin sharp flathead screwdriver to push out the snap-off holes

    Important - The snap-off hole will break off fast so ensure thre is nothing underneath the guard that the screw driver can hit, failure to do so may lead to damage or harm

  5. Then feed zip ties through teh sames holes from the rear to the front (you must use min 5 zip ties to ensure the guard is secure)

  6. Add clear tape to all areas the guard contacts to frame to reduce scratches

  7. Pull up zip ties LIGHTLY to check alignment ensuring the head of the zip tie is at the botom/underneath the swingarm so it doesn't catch your legs whilst pedalling

  8. Once aligned USE PLIERS TO PULL UP VERY TIGHT, cut off excess zip ties

  9. Before use, ensure the guard doesn't hit the frame when bottoming the fork

    mudguards/proguard/rear/fitting/rear-1.png mudguards/proguard/rear/fitting/rear-2.png

Important

  • Zip ties must be tight to prevent movement.
  • Must be a minimum of 15mm tyre & 10mm frame clearance on bottoming
  • RECOMENDED: Use clear protective tape on areas that the guard contacts the fork to eliminate any rub marks or scratches
  • DO NOT USE IN STICKY / CLAGGY MUD AS IT MAY BLOCK AND CAUSE INJURY OR DAMAGE
  • RapidRacerProducts Ltd accepts no liability for any damage / injury caused due to improper fitting / use of our products
  • RapidRacerProducts Ltd, Parkfields Business Centre, Park Street, Stafford, ST17 4AL, United Kingdom
  • Suitable for disc only mountain bikes
